Main file that contains the main.cpp. More...

#include <stdio.h>
#include <iomanip>
#include <time.h>
#include <armadillo>
#include <boost/filesystem.hpp>
#include <cv.h>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/opencv.hpp>
#include <opencv2/stitching/stitcher.hpp>
#include "definitions/experiments.h"
#include "definitions/define.h"
#include "executables/execute_commands.h"
#include "headers/homography.h"
#include "headers/sequence_processing.h"
#include "headers/master_frames.h"
#include "headers/line_and_point_operations.h"
#include "headers/image_reconstruction.h"
#include "headers/message_handler.h"

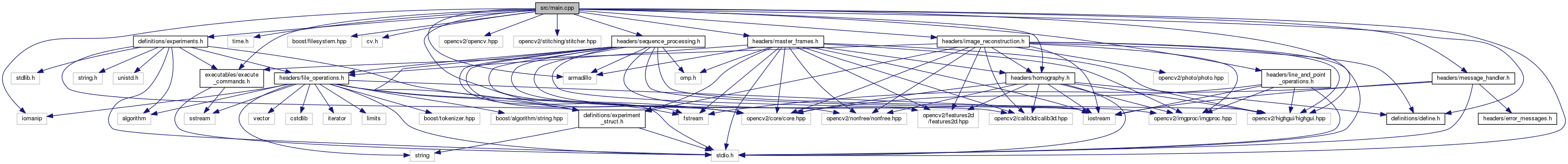

Include dependency graph for main.cpp:

Functions
std::string	getItFormatted (int frame_number)
	getItFormatted - Formats the number with padding. More...

void	writeToOutput (cv::VideoWriter &save_video, cv::Mat &image, uint frame_number)
	writeToOutput - Writes the given image to the output (save_video and/or screen) More...

void	getStableFrameTemporally (cv::Mat &input_frame, cv::Mat &homography_matrix, const cv::Rect &drop_area, const cv::Rect &crop_area, int frame_number, int d, int D, cv::vector< int > &selected_frames, const std::vector< cv::KeyPoint > &keypoints_master_pre, const std::vector< cv::KeyPoint > &keypoints_master_pos, const cv::Mat &descriptors_master_pre, const cv::Mat &descriptors_master_pos, int attempt, MessageHandler &msg_handler, cv::Mat &stable_frame)
	getStableFrame - Returns a frame stabilized given the parameters. More...

void	getStableFrameSpatially (cv::Mat &input_frame, cv::Mat &homography_matrix, const cv::Rect &drop_area, const cv::Rect &crop_area, int frame_number, float s, float S, cv::vector< int > &selected_frames, const std::vector< cv::KeyPoint > &keypoints_master_pre, const std::vector< cv::KeyPoint > &keypoints_master_pos, const cv::Mat &descriptors_master_pre, const cv::Mat &descriptors_master_pos, int attempt, MessageHandler &msg_handler, cv::Mat &stable_frame)
	getStableFrameTemporally - Returns a frame stabilized given the parameters. More...

const std::string	currentDateTime ()

int	main (int argc, char *argv[])
	main.cpp More...

Variables
int	log_number_length

int	num_of_reconstructed_frames = 0

int	num_of_dropped_frames = 0

int	num_of_good_frames = 0

int	num_of_fails_in_homography = 0

int	saved_frames = 0

EXPERIMENT	experiment_settings

Detailed Description

Main file that contains the main.cpp.

Function Documentation

const std::string currentDateTime ( )

std::string getItFormatted ( int frame_number )

getItFormatted - Formats the number with padding.

Parameters

frame_number

Returns

Author: Washington Luis de Souza Ramos

Date: 10/09/2016

void getStableFrameSpatially	(	cv::Mat &	input_frame,
		cv::Mat &	homography_matrix,
		const cv::Rect &	drop_area,
		const cv::Rect &	crop_area,
		int	frame_number,
		float	s,
		float	S,
		cv::vector< int > &	selected_frames,
		const std::vector< cv::KeyPoint > &	keypoints_master_pre,
		const std::vector< cv::KeyPoint > &	keypoints_master_pos,
		const cv::Mat &	descriptors_master_pre,
		const cv::Mat &	descriptors_master_pos,
		int	attempt,
		MessageHandler &	msg_handler,
		cv::Mat &	stable_frame
	)

getStableFrameTemporally - Returns a frame stabilized given the parameters.

getStableFrameSpatially - Returns a frame stabilized given the parameters.

Parameters

input_frame
homography_matrix
drop_area
crop_area
frame_number
s	- Spatial distance to the previous master (using the instability costs)
S	- Spatial distance between the masters (using the instability costs)
selected_frames
image_master_pre
image_master_pos
trial	- The number of the current attempt
msg_handler	- The message handler
stable_frame

Author: Washington Luis de Souza Ramos

Date: 10/09/2016

CASE 1: Homography makes it good, frame is kept.

CASE 2: Homography makes it regular, frame needs to be reconstructed

CASE 2.1: Homography makes it awful, a new frame needs to be selected

CASE 3: Homography makes it awful, a new frame needs to be selected

void getStableFrameTemporally	(	cv::Mat &	input_frame,
		cv::Mat &	homography_matrix,
		const cv::Rect &	drop_area,
		const cv::Rect &	crop_area,
		int	frame_number,
		int	d,
		int	D,
		cv::vector< int > &	selected_frames,
		const std::vector< cv::KeyPoint > &	keypoints_master_pre,
		const std::vector< cv::KeyPoint > &	keypoints_master_pos,
		const cv::Mat &	descriptors_master_pre,
		const cv::Mat &	descriptors_master_pos,
		int	attempt,
		MessageHandler &	msg_handler,
		cv::Mat &	stable_frame
	)

getStableFrame - Returns a frame stabilized given the parameters.

getStableFrameTemporally - Returns a frame stabilized given the parameters.

Parameters

input_frame
homography_matrix
drop_area
crop_area
frame_number
d
D
selected_frames
image_master_pre
image_master_pos
trial	- The number of the current attempt
stable_frame

Author: Washington Luis de Souza Ramos

Date: 10/09/2016

Parameters

input_frame
homography_matrix
drop_area
crop_area
frame_number
d	- Temporal distance to the previous master
D	- Temporal distance between the masters
selected_frames
image_master_pre
image_master_pos
trial	- The number of the current attempt
msg_handler	- The message handler
stable_frame

Author: Washington Luis de Souza Ramos

Date: 10/09/2016

CASE 1: Homography makes it good, frame is kept.

CASE 2: Homography makes it regular, frame needs to be reconstructed

CASE 2.1: Homography makes it awful, a new frame needs to be selected

CASE 3: Homography makes it awful, a new frame needs to be selected

int main	(	int	argc,
		char *	argv[]
	)

main.cpp

Usage:
< Program_name > < Settings_file > [ Range_min = 0 ] [ Range_max = num_frames ]

Example 1: Run VideoStabilization in the Experiment_1 processing the whole video.
-> VideoStabilization Experiment_1.xml
Example 2: Run VideoStabilization in the Experiment_1 processing from the 150 frame until the last one.
-> VideoStabilization Experiment_1.xml 150
Example 2: Run VideoStabilization in the Experiment_1 processing from the 150 frame until the frame 490.
-> VideoStabilization Experiment_1.xml 150 490

The program can exit with following codes:
-1 - Wrong number of input parameters.
-2 - Experiment id does not exist.
-3 - Can not open the accelerated video.
-4 - Can not create file to save the output video.
-5 - Can not open the video original video.
-6 - Can not open the CSV file with the selected frame numbers of the accelerated video.
-7 - Can not create directory to save the output data.
-8 - Can not create log text file.
-9 - Range limits is not well defined.
-10 - Can not open the CSV file with the semantic costs of the original video.
-11 - transition from frame_src to frame_dst larger than number of transitions describle int the file the semantic costs

Parameters

argc	- number of parameters in argv.
argv	- < Settings_file > [ Range_min = 0 ] [ Range_max = num_frames ]

WRITING THE RESULT TO THE OUTPUT ///

THIS IS NOT A MASTER FRAME ///

THIS IS A MASTER FRAME ///

WRITING THE RESULT TO THE OUTPUT ///

void writeToOutput	(	cv::VideoWriter &	save_video,
		cv::Mat &	image,
		uint	frame_number
	)

writeToOutput - Writes the given image to the output (save_video and/or screen)

Parameters

save_video
frame_number

Author: Washington Luis de Souza Ramos

Date: 10/09/2016

Variable Documentation

EXPERIMENT experiment_settings

int log_number_length

int num_of_dropped_frames = 0

int num_of_fails_in_homography = 0

int num_of_good_frames = 0

int num_of_reconstructed_frames = 0

int saved_frames = 0
